Программа

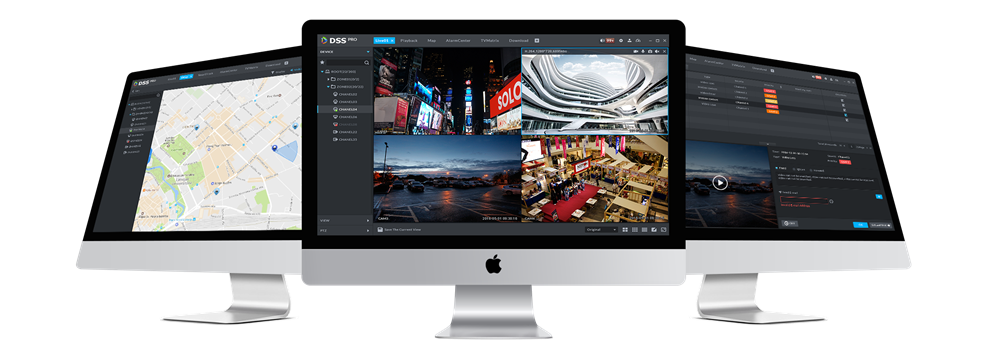

" DSS PRO "
 |
|
|
• Hardware for Server
|
|
Recommended
|
|
CPU
|
Intel Xeon Silver 4114@ 2.2GHz
|
|
Memory
|
16GB
|
|
System Disk
|
1TB, 500G free for DSS
|
|
Ethernet port
|
4 Ports@1000Mbps
|
|
Minimum
|
|
CPU
|
E3-1220 v5@2.60GHz 4 Core Processor
|
|
Memory
|
8GB
|
|
System Disk
|
1TB, 500G free for DSS
|
|
Ethernet port
|
2 Ports@1000Mbps
|
|
• Hardware for Control Client
|
|
Recommended
|
|
CPU
|
Intel Core i5, 64 bits 4 Core Processor
|
|
Memory
|
8GB
|
|
Graphics Card
|
NVIDIA® GeForce®GT 730
|
|
Hard Drive Capacity
|
200G free for DSS Control Client
|
|
Ethernet port
|
1000Mbps
|
|
Minimum
|
|
CPU
|
Intel Core i3, 64 bits 4 Core Processor
|
|
Memory
|
4GB
|
|
Graphics Card
|
Intel® HD Graphics 4400
|
|
Hard Drive Capacity
|
100G free for DSS Control Client
|
|
Ethernet port
|
1000Mbps
|
|
iPhone
|
iPhone5S and above
|
|
Android
|
Resolution: 1280X720 and above
RAM: 3GB and above
|
|
Performance Specification
|
|
|
E3-1220 V5
|
Intel Xeon Silver 4114
|
|
Org, User and Role
|
|
Organization
|
10 hierarchies, 999 organizations per hierarchy
|
|
Role(User Permission)
|
100
|
|
User
|
200 online users
|
|
Device and Channel
|
|
Total video device and channel
|
600devices, 1200 channels
|
1000devices, 2000 channels
|
|
Auto-Register
|
120 devices, 300 video channels
|
200 devices, 500 video channels
|
|
ANPR device
|
120 Channel
|
200 Channel
|
|
Face Recognition Channel
|
32 Channel
|
64 Channel
|
|
ONVIF
|
120 devices 480 channels
|
200 devices 800 channels
|
|
People Counting Camera
|
60 Channel
|
100 Channel
|
|
Heatmap Camera
|
60 Channel
|
100 Channel
|
|
POS
|
60 POS channels (30 POS data per second)
|
100 POS channels (30 POS data per second)
|
|
Media Transmission Server
|
|
Video input per server
|
600 Mbps
|
|
Video output per server
|
600 Mbps
|
|
Playback, Storage and Download
|
|
Playback bandwidth per server
|
100 Mbps
|
|
Video storage bandwidth per server
|
600 Mbps
|
|
Maximum capacity per storage server
|
200TB
|
|
Maximum storage device number per server
|
5
|
|
Download task
|
5
|
|
Maximum Record Plan
|
100
|
|
Alarm
|
|
Event Rules
|
200
|
|
Number of alarm reception without pic
|
200
|
|
Number of alarm reception without pic(Peak)
|
300
|
|
Number of alarm reception with pic
|
15
|
|
Alarm Records
|
5,000,000*
|
|
Map
|
|
Hierarchy
|
8 Hierarchies
|
|
Submap
|
32 per hierarchy
|
|
Map size of raster map
|
15MB
|
|
Spots per Map(Camera Alarm Input and etc. )
|
Up to 200(GIS and Raster)
|
|
Face Recognition
|
|
Face Library
|
50
|
|
Persons per face library
|
5000
|
|
Captured Face Pictures Record
|
5,000,000*
|
|
Face Pictures
|
15Pic per second
|
|
ANPR
|
|
Vehicle blacklist
|
100
|
|
License Plate Recognition Record
|
5,000,000*
|
|
ANPR Picture
|
15 pic per second
|
|
Section Number
|
100
|
|
Violation Record
|
5,000,000*
|
|
Average Speed Record
|
5,000,000*
|
|
Data info
|
|
People Counting Records
|
5,000,000*
|
|
Log
|
5,000,000*
|
|
Store Management
|
|
Max store number
|
50
|
|
Distributed System
|
|
Server Number
|
|
Number of slave server
|
Up to 20
|
|
Device and Channel
|
|
Total device and video channel for distribution
|
5000 devices 20000 channels
|
|
ANPR device
|
800 devices
|
|
Auto-Register
|
4000devices, 10000 channels
|
|
ONVIF
|
500 devices 2000channels
|
|
POS
|
800 devices
|
Оборудование
для
программного комплекса
" DSS PRO "

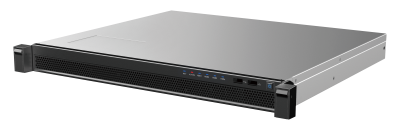

DSS4004-S2-WA
Plug-and-Play Surveillance System |
DSS4004-S2
An Economical Surveillance System |
DSS4004
General Surveillance Management Center |
VTSS5000
Video Talk SIP Server |

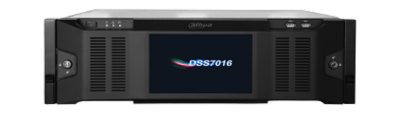

DSS7016DR
General Surveillance Management Center |
DSS7016D
General Surveillance Management Center |
