16-ти канальные CVI видеорегистраторы

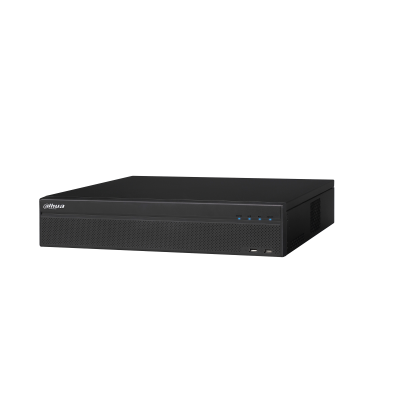

XVR8816S
16 Channel Penta-brid 4MP 2U                                  Ultra Series
> Embedded processor  \ 2Gb port
> Smart H.264 dual-stream video compression 480fps - 1080P \ 240fps - 4Mpix
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max 64 channels IP camera inputs, each channel up to 12MP
> Max 256Mbps Incoming Bandwidth,384Mbps Forwarding Bandwidth
> Audio 16\1     Alarm in\out  16\6
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR8808/16S

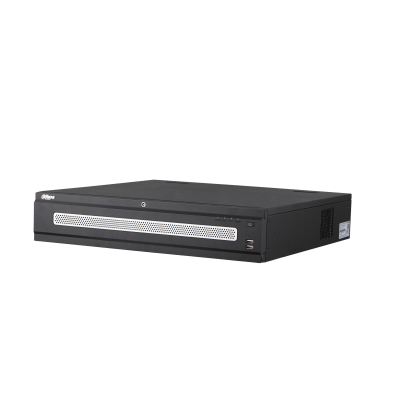

HCVR8816S-URH-S3

16 Channel Quadri-brid 1080P 2U                               Ultra Series
> Embedded processor   \ 2Gb port
> H.264 dual-stream video compression
> Support HDCVI/AHD/CVBS/IP video inputs
> Max 64 channels IP camera inputs, each channel up to 12MP
> Max 200Mbps Incoming Bandwidth,384Mbps Forwarding Bandwidth
> Smart Search and Intelligent Video System
> Support RAID0,1,5,6,10
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 HCVR8808/16S-URH-S3

HVR8816S-S3

16 Channel Penta-brid 1080MP 2U                               Ultra Series
> Embedded processor  \ 2Gb
> Smart H.264 dual-stream video compression 480fps - 1080P \ 480fps - 720P
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max 64 channels IP camera inputs, each channel up to 12MP
> Max 256Mbps Incoming Bandwidth,384Mbps Forwarding Bandwidth
> Audio 16\1    Alarm in\out  16\6
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR8808/16S

HCVR8416L-S3

16 Channel 1080P 1.5U                                                    Ultra Series
>Embedded processor  \ 1 Gb port
>H.264+/H.264 video compression  480fps -720P  \  480fps - 1080P
>Support HDCVI/AHD/CVBS video inputs
>Max 64 channels IP camera inputs, each channel up to 12MP
>Max 256\256Mbps Incoming Bandwidth
>Audio 4\1    Alarm in\out 16\6
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 HCVR8404/08/16L-S3

HCVR8216A-S3

 16 Channel 1080P 1U                                                           Ultra Series
>Embedded processor  \2xGb port
>H.264+/H.264 video compression   480 fps - 720P \ 480 fps - 720P
>Support HDCVI/AHD/CVBS video inputs
>Max 64 channels IP camera inputs, each channel up to 12MP
>Max 256\256Mbps Incoming Bandwidth
>Audio 4\1      Alarm in\out  16\3
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 HCVR8204/08/16A-S3

HCVR7216AN-4M

16 Channel 4MP 1U                                                    Pro Series
>Embedded processor  \  LAN -1xGb port
>H.264+/H.264 Dual-stream video compression  \ 240 fps - 4MP \ 480 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 2 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth
>HDMI output up to 4K(3840x2160) resolution

>Audio 1\1    Alarm in\out   -\-    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7204/08/16AN-4M

HCVR7116H-4M

16 Channel 4MP   MINI 1U                                           Pro Series
>Embedded processor  \  LAN -1xGb port
>H.264+/H.264 Dual-stream video compression  \ 240 fps - 4MP \ 480 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 2 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth
>HDMI output up to 4K(3840x2160) resolution

>Audio 1\1    Alarm in\out   -\-    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR7816S

16 Channel Penta-brid 1080MP 2U                               Pro Series
> Embedded processor  \ LAN  port 2xGb
> Smart H.264 dual-stream video compression 480fps - 1080P \ 480fps - 720P
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max 64 channels IP camera inputs, each channel up to 12MP
> Max 96\96Mbps Incoming Bandwidth,
> Audio 16\1    Alarm in\out  16\6    \  HDD 8x6Tb
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR7808/16S

XVR7416L

16 Channel Penta-brid 1080MP 1,5U                               Pro Series
> Embedded processor  \ LAN  port 1xGb
> Smart H.264 dual-stream video compression 480fps - 1080P \ 480fps - 720P
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max16+8 channels IP camera inputs, each channel up to 12MP
> Max 96\96Mbps Incoming Bandwidth,
> Audio 8\1    Alarm in\out  16\6    \  HDD 4x6Tb
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR7808/16S

XVR7216A

16 Channel Penta-brid 1080P 1U                                             Pro Series
>Embedded processor  \  LAN -100Mb port
>H.264+/H.264 Dual-stream video compression  \480 fps - 720P \ 480 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth

>Audio 4\1    Alarm in\out   16\3    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR7204/08/16A

XVR7216AN

16 Channel Penta-brid 1080P 1U                                             Pro Series
>Embedded processor  \  LAN -100Mb port
>H.264+/H.264 Dual-stream video compression  \480 fps - 720P \ 480 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out   -\-    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR7204/08/16A

XVR7116HE

16 Channel Penta-brid 1080P  MINI 1U                     Pro Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 180 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96Mbps Incoming Bandwidth

>Audio- 16\1      Alarm in\out - 8\3       HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR7116H

16 Channel Penta-brid 1080P  MINI 1U                     Pro Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 180 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96Mbps Incoming Bandwidth

>Audio- 1\1      Alarm in\out - -\-       HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR5816S

16 Channel Penta-brid 1080P  2U                            Lite Series
>Embedded processor  \  LAN -2x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96Mbps Incoming Bandwidth

>Audio- 16\1      Alarm in\out - 16\6       HDD  8x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

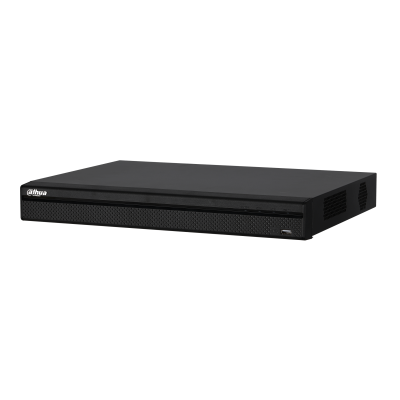

 HCVR5232AN-S3

XVR5416L

16 Channel Penta-brid 1080P  1,5U                            Lite Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96Mbps Incoming Bandwidth

>Audio- 4\1      Alarm in\out - 16\6       HDD  4x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR5232AN-S3

XVR5216A

16 Channel Penta-brid 1080P-Lite  1U                       Lite Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth

>Audio 4\1    Alarm in\out  16\3    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR5216AN

16 Channel Penta-brid 720P  1U                              Lite Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-   HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR5116HE

16 Channel Penta-brid 1080P-Lite  MINI 1U          Lite Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth

>Audio 16\1    Alarm in\out  16\3    HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR5116H

XVR5116HS

16 Channel Penta-brid 1080P-Lite  MINI 1U          Lite Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  480 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+8 channels IP camera inputs, each channel up to 5MP
>Max 96\96 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR4216A

16 Channel Penta-brid 720P 1U                                              Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 240 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+2 channels IP camera inputs, each channel up to 5MP
>Max 72\72 Mbps Incoming Bandwidth

>Audio 4\1    Alarm in\out  16\3    HDD  2x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR4216AN

16 Channel Penta-brid 720P 1U                                              Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 240 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+2 channels IP camera inputs, each channel up to 5MP
>Max 72\72 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  2x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR4116HE

16 Channel Penta-brid 720P  MINI 1U                                  Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 240 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+2 channels IP camera inputs, each channel up to 5MP
>Max 72\72 Mbps Incoming Bandwidth

>Audio 16\1    Alarm in\out  16\3    HDD  1x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR4116HS

16 Channel Penta-brid 720P MINI 1U                                    Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 240 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 16+2 channels IP camera inputs, each channel up to 5MP
>Max 72\72 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  1x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M
