8-и канальные CVI видеорегистраторы

XVR8808S
8 Channel Penta-brid 4MP 2U                               Ultra Series
> Embedded processor   \ 2 Gb port
> Smart H.264 dual-stream video compression    120fps - 4Mpix \ 240fps - 1080P
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max 64 channels IP camera inputs, each channel up to 12MP
> Max 256Mbps Incoming Bandwidth,384Mbps Forwarding Bandwidth
> Audio 16\1     Alarm in\out 16\6
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR8808/16S

HCVR8808S-URH-S3

8 Channel Quadri-brid 1080P 2U                               Ultra Series
> Embedded processor   \2Gb port
> H.264 dual-stream video compression
> Support HDCVI/AHD/CVBS/IP video inputs
> Max 64 channels IP camera inputs, each channel up to 12MP
> Max 200Mbps Incoming Bandwidth,384Mbps Forwarding Bandwidth
> Smart Search and Intelligent Video System
> Support RAID0,1,5,6,10
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 HCVR8808/16S-URH-S3

HVR8808S+-S3

8 Channel Penta-brid 1080MP 2U                               Ultra Series
> Embedded processor   \ 2 Gb port
> Smart H.264 dual-stream video compression    2400fps - 720P \ 240fps - 1080P
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max 64 channels IP camera inputs, each channel up to 12MP
> Max 256Mbps Incoming Bandwidth,384Mbps Forwarding Bandwidth
> Audio 8\1     Alarm in\out 16\6
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR8808/16S

HCVR8408L-S3

8 Channel 1080P 1.5U                               Ultra Series
>Embedded processor  \ 1 Gb port
>H.264+/H.264 video compression  240fps -720P  \  240fps - 1080P
>Support HDCVI/AHD/CVBS video inputs
>Max 64 channels IP camera inputs, each channel up to 12MP
>Max 256\256Mbps Incoming Bandwidth
>Audio 4\1    Alarm in\out 16\6
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 HCVR8404/08/16L-S3

HCVR8208A-S3

8 Channel 1080P 1U                                    Ultra Series
>Embedded processor  \2x Gb port
>H.264+/H.264 video compression   240 fps - 720P \ 240 fps - 720P
>Support HDCVI/AHD/CVBS video inputs
>Max 64 channels IP camera inputs, each channel up to 12MP
>Max 256\256Mbps Incoming Bandwidth
>Audio 4\1      Alarm in\out  16\3
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 HCVR8204/08/16A-S3

HCVR7208AN-4M

8 Channel 4MP 1U                                                    Pro Series
>Embedded processor  \  LAN -1Gb port
>H.264+/H.264 Dual-stream video compression  \ 120 fps - 4MP \ 240 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 4 channels IP camera inputs, each channel up to 5MP
>Max 48\48Mbps Incoming Bandwidth
>HDMI output up to 4K(3840x2160) resolution

>Audio 1\1    Alarm in\out   -\-    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7204/08/16AN-4M

HCVR7108H-4M

8 Channel 4MP    MINI  1U                                         Pro Series
>Embedded processor  \  LAN -1Gb port
>H.264+/H.264 Dual-stream video compression  \ 120 fps - 4MP \ 240 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 4 channels IP camera inputs, each channel up to 5MP
>Max 48\48Mbps Incoming Bandwidth
>HDMI output up to 4K(3840x2160) resolution

>Audio 1\1    Alarm in\out   -\-    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR7808S

8 Channel Penta-brid 1080MP 2U                               Pro Series
> Embedded processor  \ LAN  port 2xGb
> Smart H.264 dual-stream video compression 240fps - 1080P \ 240fps - 720P
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max 8 channels IP camera inputs, each channel up to 12MP
> Max 48\48Mbps Incoming Bandwidth,
> Audio 8\1    Alarm in\out  16\6    \  HDD 8x6Tb
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR7808/16S

XVR7408L

8 Channel Penta-brid 1080MP 1,5U                               Pro Series
> Embedded processor  \ LAN  port 1xGb
> Smart H.264 dual-stream video compression 240fps - 1080P \ 240fps - 720P
> Support HDCVI/AHD/CVBS/TVI/IP video inputs
> Max 8+4 channels IP camera inputs, each channel up to 12MP
> Max 48\48Mbps Incoming Bandwidth,
> Audio 4\1    Alarm in\out  16\6    \  HDD 4x6Tb
> Support HDCVI/CVBS Loop Out
>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP		 XVR7808/16S

XVR7208A

8 Channel Penta-brid 1080P 1U                                             Pro Series
>Embedded processor  \  LAN -1xGb port
>H.264+/H.264 Dual-stream video compression  \240 fps - 720P \ 240 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio 4\1    Alarm in\out   8\3    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR7204/08/16A

XVR7208AN

8 Channel Penta-brid 1080P 1U                                             Pro Series
>Embedded processor  \  LAN -1xGb port
>H.264+/H.264 Dual-stream video compression  \240 fps - 720P \ 240 fps - 1080P
>Support HDCVI/CVBS video inputs
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out   -\-    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR7204/08/16A

XVR7108HE

8 Channel Penta-brid 1080P  MINI 1U                     Pro Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48Mbps Incoming Bandwidth

>Audio 8\1      Alarm in\out  8\3       HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR7108H

8 Channel Penta-brid 1080P  MINI 1U                     Pro Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 240 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48Mbps Incoming Bandwidth

>Audio 1\1      Alarm in\out  -\-      HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR5808S

8 Channel Penta-brid 1080P  2U                            Lite Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio- 8\1      Alarm in\out - 8\6       HDD  8x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR5232AN-S3

XVR5408L

8 Channel Penta-brid 1080P  1,5U                            Lite Series
>Embedded processor  \  LAN -1x1Gb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio- 4\1      Alarm in\out - 8\6       HDD  4x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR5232AN-S3

XVR5208A

8 Channel Penta-brid 1080P-Lite  1U                       Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio 4\1    Alarm in\out  8\3    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR5208AN

8 Channel Penta-brid 720  1U                               Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  2x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR5108HE

8 Channel Penta-brid 1080P-Lite  MINI 1U          Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio 8\1    Alarm in\out  8\3    HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR5108H

XVR5108HS

8 Channel Penta-brid 1080P-Lite  MINI 1U          Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR5108C

8 Channel Penta-brid 1080P-Lite  SMART 1U           Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  240 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+4 channels IP camera inputs, each channel up to 5MP
>Max 48\48  Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  1x6Tb

>Tripwire, Intrusion,\Abandoned/Missing,\Face Detection\Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

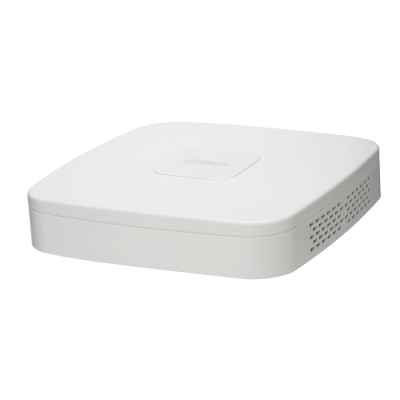

 XVR7104C

XVR4208A

8 Channel Penta-brid 720P 1U                                              Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  120 fps - 720P \ 120 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 4+2 channels IP camera inputs, each channel up to 5MP
>Max 20\20 Mbps Incoming Bandwidth

>Audio 4\1    Alarm in\out  8\3    HDD  2x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR4208AN

8 Channel Penta-brid 720P 1U                                              Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  120 fps - 720P \ 120 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+2 channels IP camera inputs, each channel up to 5MP
>Max 40\40 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  2x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR5204/08/16A

XVR4108HE

8 Channel Penta-brid 720P  MINI 1U                                  Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  120 fps - 720P \ 120 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+2 channels IP camera inputs, each channel up to 5MP
>Max 40\40 Mbps Incoming Bandwidth

>Audio 8\1    Alarm in\out  8\3    HDD  1x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR4108HS

8 Channel Penta-brid 720P MINI 1U                                    Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  120 fps - 720P \ 120 fps - 1080N
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+2 channels IP camera inputs, each channel up to 5MP
>Max 40\40 Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  1x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 HCVR7104/08/16H-4M

XVR4108C

8 Channel Penta-brid 720P  SMART 1U                 Lite Series
>Embedded processor  \  LAN -1x100Mb port
>H.264+/H.264 Dual-stream video compression  120 fps - 720P \ 120 fps - 1080P
>Support HDCVI/AHD/CVBS/TVI (Auto-detect)
>Max 8+2 channels IP camera inputs, each channel up to 5MP
>Max 40\40  Mbps Incoming Bandwidth

>Audio 1\1    Alarm in\out  -\-    HDD  1x6Tb

>Smart play, P2P,\Coaxial upgrade, 2D/3DNR, UTP

 XVR7104C
