IP видеорегистраторы на 16 каналов

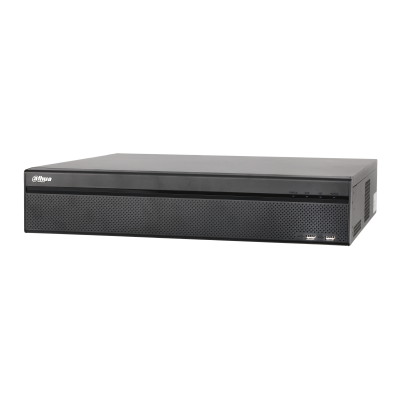

NVR5816-16P-4KS2
NVR5816-4KS2
16 Channel 2U PoE 4K&H.265 Pro                  Professional NVR
>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>2HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera
>Support RAID 0 /1/5/6/10
>LAN -2x1000Mbit
>E-SATA -  1
> HDD  - 8x6Tb
>Audio  - 1\1
>Alarm in\out - 16\6
>видеоаналитика - Tripwire, Intrusion \ Abandoned/Missing \ Scene Change \ Face Detection
> Star Features  -    Fisheye Dewarp, Smart Add \ POS(Optional), P2P, N+M
NVR4816/4832-4KS2

NVR5416-16P-4KS2
NVR5416-4KS2

>Up to 16 channel IPC input                                                                                      Professional NVR
>H.265/H.264/MJPEG/MPEG4 codec decoding
> IP video input - 16 channel
> Max 320 Mbps Incoming Bandwidth
> Max Decoding -4ch@4K \ 16ch@1080p
> HDD - 4 х 6Tb
> RAID - нет
> eSATA - 1
> Audio - 1\1
> Alarm in\out - 16\6
> LAN - 1 х1000 M
> PoE - 16 (IEEE802.3at/af)
> Intelligent Video -Tripwire, Intrusion  \ Abandoned/Missing \ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>2HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0, 1USB2.0)
>Support IPC UPnP, 16PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
NVR4816/4832-4KS2

NVR5216-16P-4KS2
NVR5216-4KS2

>Up to 16 channel IPC input                                                                                          Professional NVR
>H.265/H.264/MJPEG/MPEG4 codec decoding
> IP video input - 16 channel
> Max 320 Mbps Incoming Bandwidth
> Max Decoding -4ch@4K \ 8 (16 - 16P) ch@1080p
> HDD - 2 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 4/2
> LAN - 1 х1000 M
> PoE - 16 (IEEE802.3at/af)
> Intelligent Video -Tripwire, Intrusion  \ Abandoned/Missing \ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)
>Support IPC UPnP, 8PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
NVR4816/4832-4KS2

NVR4816-4KS2
NVR4816-16P-4KS2

16 Channel 2U 4K&H.265 Lite                         Lite NVR H265
> H.265/H.264 codec decoding
> IP video input - 16 channel
> Max 200 Mbps Incoming Bandwidth
> Max Decoding -2 ch@4K \ 8ch@1080p
> HDD - 8 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 16\4
> LAN - 2 (1 -16Р) х 1000 M
> PoE - 16 (IEEE802.3at/af)
> Intelligent Video -Tripwire, Intrusion  \ Abandoned/Missing \ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support ANR technology to enhance the storage reliability when the network break down
NVR4816/4832-4KS2

NVR4416-4KS2
NVR4416-16P-4KS2

16 Channel 1.5U PoE 4K&H.265 Lite            Lite NVR H265
> H.265/H.264 codec decoding
> IP video input - 16 channel
> Max 200 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 8ch@1080p
> HDD - 4 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 16\4
> LAN - 1 х1000 M
> PoE - 16 (IEEE802.3at/af)
> Intelligent Video -Tripwire, Intrusion  \ Abandoned/Missing \ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 16PoE ports
> Support ANR technology to enhance the storage reliability when the network break down
NVR4816/4832-4KS2

NVR4216-16P-4KS2
NVR4216-4KS2

16 Channel 1U PoE 4K&H.265 Lite                Lite NVR H265
> H.265/H.264 codec decoding
> IP video input - 16 channel
> Max 200 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 8ch@1080p
> HDD - 2 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 16\4
> LAN - 1 х1000 M
> PoE - 16 (IEEE802.3at/af)
> Intelligent Video -Tripwire, Intrusion  \ Abandoned/Missing \ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 16PoE ports
> Support ANR technology to enhance the storage reliability when the network break down
NVR4216/4232-16P-4KS2

NVR4116H
S-4KS2

16 Channel Mini 1U Lite                                   Lite NVR H265
> H.264+/H.264 codec decoding
> IP video input - 16 channel
> Max 80 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 16ch@720p
> HDD - 1 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - нет
> LAN - 1 х100 M
> PoE - нет
> Intelligent Video -нет
> Star Features - Easy4ip
> Up to 5MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support ANR technology to enhance the storage reliability when the network break down
NVR4216/4232-16P-4KS2

NVR4116-4KS2

16 Channel Smart 1U PoE 4K&H.265 Lite              Lite NVR H265
> H.265/H.264 codec decoding
> IP video input - 16 channel
> Max 80 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 16ch@720p
> HDD - 1 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - нет
> LAN - 1 х100 M
> PoE - нет
> Intelligent Video -нет
> Star Features - Easy4ip
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports
> Support ANR technology to enhance the storage reliability when the network break down

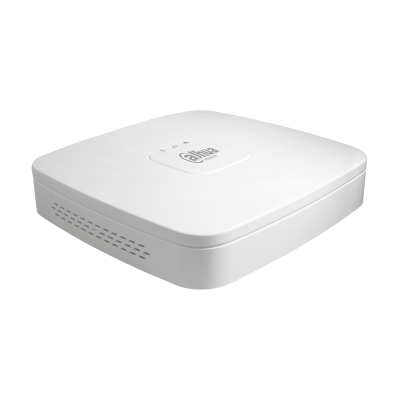

NVR2104/2108-S2

NVR2216-S2

16 Channel 1U PoE Lite                                                    Lite Series
>H.264+/H.264 codec decoding
> IP video input - 16 channel
> Max 80 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 16ch@720p
> HDD - 2 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - нет
> LAN - 1 х100 M
> PoE - нет
> Intelligent Video -нет
> Star Features - Easy4ip
>Up to 6Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera
NVR4216/4232-16P-4KS2

NVR2116HS-S2

16 Channel Compact 1U PoE Lite                     Lite Series
>H.264+/H.264 codec decoding
> IP video input - 16 channel
> Max 80 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 16ch@720p
> HDD - 1 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - нет
> LAN - 1 х100 M
> PoE - нет
> Intelligent Video -нет
> Star Features - Easy4ip
>Up to 6Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera
NVR4216/4232-16P-4KS2

NVR2116-S2

16 Channel Smart 1U Lite                                                 Lite Series
>H.264+/H.264 codec decoding
> IP video input - 16 channel
> Max 80 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 16ch@720p
> HDD - 1 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - нет
> LAN - 1 х100 M
> PoE - нет
> Intelligent Video -нет
> Star Features - Easy4ip
>Up to 6Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera
NVR2104/2108-S2
