IP
видеорегистраторы на 32 канала

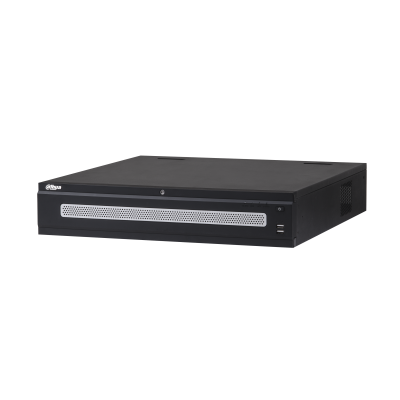

NVR608-32-4KS2 |
32 Channel Ultra 4K H.265
Ultra NVR
> Intel Processor
> Decoder H.265 \ H.264 \ Mjpeg
> IP video input - 32 channel
> Max 384 Mbps Incoming Bandwidth
> Max Decoding - 4 ch@4K \ 16ch@1080P
> HDD - 8 х 6Tb
> RAID - 0\1\5\6\10
> eSATA - 1
> Audio - 1\1
> Alarm in\out - 16\8
> LAN - 2 х1000 M
> PoE - нет
> Intelligent Video -Tripwire, Intrusion \ Abandoned/Missing
\ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
> Max 384Mbps
Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Supports RAID 0/1/5/6/10/50/60
> Smart Tracking and Intelligent Video |
 |
NVR5832-4KS2 |
>Up to 16/32/64 channel IPC input
Professional NVR
>H.265/H.264/MJPEG/MPEG4 codec decoding
> IP video input - 32 channel
> Max 320 Mbps Incoming Bandwidth
> Max Decoding - 4 ch@4K \ 16ch@1080P
> HDD - 8 х 6Tb
> RAID - 0\1\5\6\10
> eSATA - 1
> Audio - 1\1
> Alarm in\out - 16\6
> LAN - 2 х1000 M
> PoE - нет
> Intelligent Video -Tripwire, Intrusion \ Abandoned/Missing
\ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>2HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID
interface
>Support Multi-brand network cameras: Dahua, Arecont Vision,
AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell,
Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek
and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 8 SATA HDDs up to 48TB, 4 USB(2 USB3.0, 2USB2.0)
>Support RAID 0/1/5/6/10
>Support IPC UPnP, 16PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) &
Mobile phone (DMSS) |
 |
NVR-5432-4KS2 |
>Up to 32 channel IPC input
Professional NVR
>H.265+/H.265/H.264/MJPEG/MPEG4 codec decoding
> IP video input - 32 channel
> Max 320 Mbps Incoming Bandwidth
> Max Decoding - 4 ch@4K \ 16ch@1080P
> HDD - 4 х 8Tb
> RAID - нет
> eSATA - 1
> Audio - 1\1
> Alarm in\out - 16\6
> LAN - 2 х1000 M
> PoE - нет
> Intelligent Video -Tripwire, Intrusion \ Abandoned/Missing
\ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>2HDMI/VGA simultaneous video output
>4/8/16 channel synchronous real-time playback, GRID
interface
>Support Multi-brand network cameras: Dahua, Arecont Vision,
AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell,
Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek
and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0, 1USB2.0)
>Support IPC UPnP, 16PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) &
Mobile phone (DMSS) |
 |
NVR5232-4KS2 |
>Up to 32 channel IPC input
Professional NVR
>H.265/H.264/MJPEG/MPEG4 codec decoding
> IP video input - 32 channel
> Max 320 Mbps Incoming Bandwidth
> Max Decoding - 4 ch@4K \ 16ch@1080P
> HDD - 2 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 4\2
> LAN - 1 х1000 M
> PoE - нет
> Intelligent Video -Tripwire, Intrusion \ Abandoned/Missing
\ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID
interface
>Support Multi-brand network cameras: Dahua, Arecont Vision,
AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell,
Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek
and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)
>Support IPC UPnP, 8PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) &
Mobile phone (DMSS) |
 |
NVR4832-4KS2 |
32 Channel 2U 4K&H.265 Lite
Lite NVR H265
> H.265/H.264 codec decoding
> IP video input - 32 channel
> Max 200 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 8ch@1080P
> HDD - 8 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 16\4
> LAN - 2 х1000 M
> PoE - нет
> Intelligent Video -Tripwire, Intrusion \ Abandoned/Missing
\ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support ANR technology to enhance the storage
reliability when the network break down |
 |
NVR4432-4KS2 |
32 Channel 1.5U PoE 4K&H.265 Lite
Lite NVR
H265
> H.265/H.264 codec decoding
> IP video input - 32 channel
> Max 200 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 8ch@1080P
> HDD - 4 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 16\4
> LAN - 2 х1000 M
> PoE - нет
> Intelligent Video -Tripwire, Intrusion \ Abandoned/Missing
\ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 16PoE ports
> Support ANR technology to enhance the storage
reliability when the network break down |
 |
NVR4232-4KS2 |
32 Channel 1U PoE 4K&H.265 Lite
Lite NVR
H265
> H.265/H.264 codec decoding
> IP video input - 32 channel
> Max 200 Mbps Incoming Bandwidth
> Max Decoding - 2 ch@4K \ 8ch@1080P
> HDD - 2 х 6Tb
> RAID - нет
> eSATA - нет
> Audio - 1\1
> Alarm in\out - 4\2
> LAN - 1 х1000 M
> PoE - нет
> Intelligent Video -Tripwire, Intrusion \ Abandoned/Missing
\ Scene Change \ Face Detection
> Star Features - Fisheye Dewarp, Smart \ Track, POS(Optional), N+M
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 16PoE ports
> Support ANR technology to enhance the storage
reliability when the network break down |
 |
|
